Condensing Rooftop Units (C-RTUs) Bring Promise of Higher Efficiency and Reduced Building Operating Costs

Article

Continue Reading

Combining the Financial and Energy Benefits of Rooftop Units and Condensing Gas Furnaces

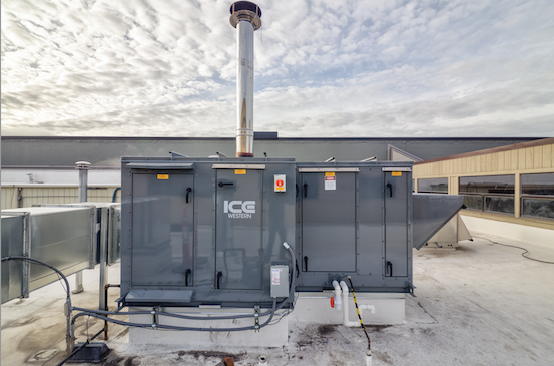

Rooftop units (RTUs)—HVAC appliances installed on building roofs—are commonly used in commercial applications due to their inherent convenience: RTUs package heating and cooling equipment together in a space that doesn’t take up precious real estate and is still accessible to technicians.

Condensing gas furnaces have recently entered the commercial RTU market, providing the benefits of non-condensing RTUs at much higher efficiency levels and lower operating costs. In fact, condensing furnaces can achieve over 90 percent AFUE*—a big upgrade when compared to traditional gas furnaces that range between 78- and 82-percent AFUE. Condensing rooftop units (C-RTUs) work similarly to traditional gas RTUs with one crucial difference: the condensing systems use a secondary heat exchanger to extract heat from the flue gases—heat that would have otherwise been lost.

C-RTUs are optimal for commercial buildings with high outside air usage, such as facilities that use dedicated outside air systems (DOAS) or make-up air units (MUA). They’re also especially effective in buildings with extended runtime cycles and relatively few service zones—e.g., retail big box and mall outlets, schools, sports arenas, theaters, medical/healthcare facilities and daycares.

Harnessing Otherwise Lost Thermal Energy

Condensing secondary heat exchanger
Traditional gas RTUs heat the air supplied to the building through a heat exchanger—a device that transfers heat from combustion gases to fresh air before it’s delivered to the building. A C-RTU furnace achieves higher efficiency levels by using a secondary heat exchanger that captures additional heat from the exhaust gases before they are expelled. The efficiency gain during this phase is a result of the flue gas changing to a liquid upon cooling, also known as the latent heat of vaporization.

Condensate management
As the gasses coming out of the C-RTU’s secondary heat exchanger cool down, they condense to form water and carbon dioxide, which together form carbonic acid. This condensate flows out through a drain pipe, and a plastic PVC pipe vents the remaining low temperature flue gases to the outdoors. Because of this process, C-RTUs require considerations for piping, pumps, neutralizers and freeze prevention. Properly installing and maintaining condensate disposal equipment will ensure that customers achieve all the benefits of high-efficiency condensing furnaces.

Other efficient features of C-RTUs

  • Modulating and two-stage combustion:
    To ensure the system efficiently meets the building load requirements, condensing furnaces use either modulating or two-stage combustion. The latter is a system with two levels of heat output for colder vs. milder weather.
  • Electric blower motor:
    Condensing furnaces use a variable-speed, direct-current electronically commutating motor (ECM) which is more energy-efficient than a standard motor.
  • Blower compartment:
    Blower compartments on high-efficiency furnaces are insulated to retain heat.
  • Advanced control systems:
    Demand control ventilation, which automatically adjusts the ventilation system for optimal occupant health, and Energy Management Systems (EMS), that monitor and control a building’s energy needs, both help to ensure a building is operating efficiently by optimizing the amount of ventilation and heating used by the building.

To learn more about condensate management, visit: betterbricks.com/resources/pro-tips-for-c-rtu-installs

In partnership with Avista, Cascade Natural Gas, Energy Trust of Oregon, NW Natural and Puget Sound Energy, NEEA is conducting a series of C-RTU pilots to better understand product performance, installation best practices and savings potential for commercial buildings in the Pacific Northwest. For more information, contact Christine Riegler at criegler@neea.org.
